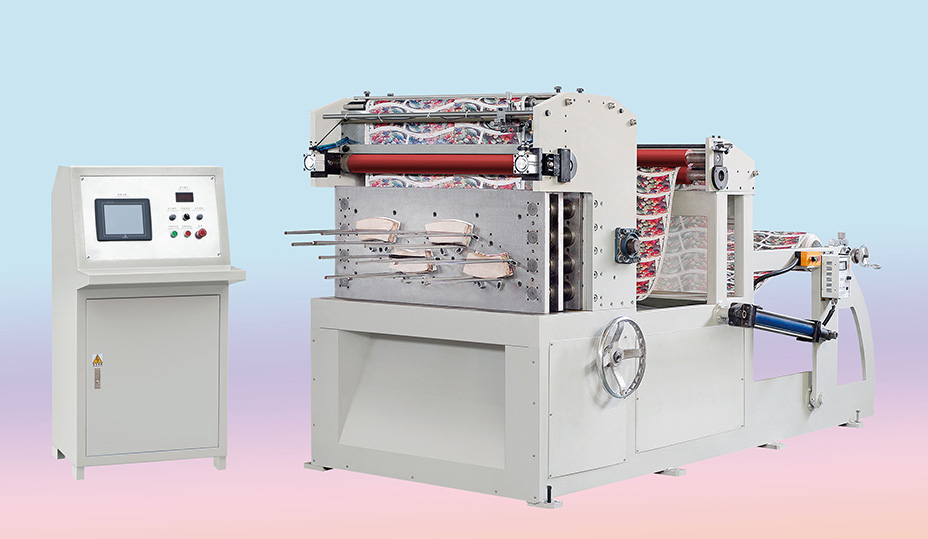

CQ850 Type-High Speed Paper Cup Punching Machine-Other-Products-HENGHAO

Name:

CQ850 Type-High Speed Paper Cup Punching Machine

Unwinding diameter	1400mm
Cutting width	850mm
Cut length	300mm
Cutting speed	180/min
Cutting accuracy	0.15
Paper range	Coil
Stacking height	500mm
Operating Voltage	380
Dimensions	3500mm×1600mm×2000mm

Features of this machine:

The RB-850 automatic punching die cutting machine adopts automatic punching die cutting technology to organically integrate the slitting, die cutting and waste removal in the production of paper products, eliminating the slitting links in the traditional process , Eliminate the raw paper loss in the slitting process, avoid the second pollution, and effectively improve the utilization rate of raw materials and the yield of finished products;

1. In addition to the waste removal process of traditional flat die-cutting, the sample is directly punched out, and the sample cut is smoother, which greatly reduces energy consumption and manpower.

2. The machine adopts a professional high-precision gap paper feeding mechanism and high-speed automatic paper feeding, which realizes smooth paper feeding, accurate positioning and neat paper delivery.

3. The application of PLC microcomputer control system LCD visual human-machine interface realizes the automation of the whole working process.

4. The key components, control system and fasteners of the machine are imported products and carefully assembled. Ensure the stable pressure of the machine, accurate positioning, safety and reliability.
